SAILOR TT-3000 LRIT는 MSC81/210에 규정된 LRIT 적합성 시험 요건을 완벽하게 만족시키는 독립형 LRIT 솔루션으로 기존의 GMDSS나 SSAS와는 구별되는 시스템입니다. 아울러 SAILOR TT-3000 LRIT의 설치는 때와 장소에 구애 받지 않으며, 오직 세 가지의 부품(mini-C transceiver, pole mount와 connection cable(20/50m))으로 이루어져 설치가 매우 용이합니다.
GENERAL | General specifications | Meets Inmarsat maritime specifications and SOLAS Resolution XI-2/6 requirements |
---|---|---|
Meets LRIT performance standard | ||
INMARSAT mini-C TRANSCEIVER | Antenna specifications | Inmarsat-C/GPS omni-directional antenna RHC polarised G/T: -23.7dB/K at 5° elevation EIRP: 7dBW at 5° elevation Elevation angle: -15° to 90° |
Operating frequencies | Rx: 1525.0 - 1559.0MHz* TX: 1626.5 - 1660.5MHz* GPS: 1575042MHz *Inmarsat frequencies: Rx: 1525.0 - 1545.0MHz Tx: 1626.5 - 1646.5MHz |
|
GPS module | 12-Channels. 1 sec update rate 15m RMS accuracy |
|
Solar radiation | Maximum flux density: 1200W/㎡ | |
Precipitation | Up to 100mm/hour, droplet size 0.5 to to 4.5mm at wind speed up to 200km/h(124mph) |
|
Ice | Up to 25mm | |
IP rating | Lloyds approved for IP66 Tested for IP68 by Thrane & Thrane |
|
Temperature range | Operating: -35°C to 55°C Storage: -40°C to 80°C |
|
Fuse | Self recovering poly fuse | |
POWER SPECIFICATIONS | Power source, floating | Operating: 10.5V - 32V DC Nominal: 12V - 24V (at max. 20m cable) |
Power consumption | Rx: 1.8W (stand by) Tx: 23W (at 12V DC supply) |
|
SATELLITE COVERAGE SPECIFICATIONS | General | Compatible with the new Inmarsat I4 satellite generation. Automatic ocean shift for global coverage. 24 hour scanning for strongest signal; scanning on signal loss |

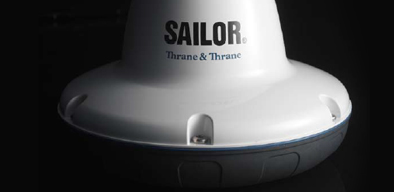

DIMENSIONS AND WEIGHT | TT-3026M mini-C Transceiver | Widest diameter: 163mm (6.4”) Height: 146mm (5.7”) Weight: 1.1kg (2.4lbs) |
