Sailor - TT3000 SSA

Ship Security Alert System Thrane & Thrane의 SAILOR TT-3000SSA SSAS(Ship Security Alert System)은 지난 10년 이상 Inmarsat-C 분야에서 매우 믿을만한 기술로 자리매김을 하였으며, GMDSS(Global Maritime Distress and Safety System)분야에서도 없어서는 안 될 중요한 역할을 해왔습니다.

SAILOR TT-3000SSA는 SSAS 전용 단말기로서 SOLAS XI-2/6 규정을 충족시키며, 여러 선급협회로부터 그 뛰어난 성능을 입증 받았습니다. 또한, SSAS의 기능을 제공하면서 동시에 IMO의 LRIT 규정을 모두 만족시키는 LRIT 터미널입니다.(SSAS 와 LRIT의 요구조건을 모두 충족시키는 독립형 단말기 TT-3000SSA)

  • 주요특징

    • 소관 관청과 도착지에 SSAS alerts를 바로 전달
    • GPS 위치를 일정한 간격으로 보고
    • 위성 연결을 통한 원격 조정
    • LRIT 기능 제공 (INMARSAT MINI-C기반이며 IMO 요구사항 충족)
    • 소개서 다운로드 PDF (영문)

Specifications

GENERAL General specifications Meets Inmarsat maritime specifications and SOLAS Resolution XI-2/6 requirements
Inmarsat Type Approval 4TT091
INMARSAT mini-C TRANSCEIVER Antenna specifications Inmarsat-C/GPS omni-directional antenna
RHC polarised
G/T: -23.7dB/K at 5° elevation
EIRP: 7dBW at 5° elevation
Elevation angle: -15° to 90°
Operating frequencies Rx: 1525.0 ? 1559.0MHz*
TX: 1626.5 - 1660.5MHz*
GPS: 1575042MHz
*Inmarsat frequencies:
Rx: 1525.0 - 1545.0MHz
Tx: 1626.5 - 1646.5MHz
GPS module 12-Channels. 1 sec update rate
15m RMS accuracy
Solar radiation Maximum flux density: 1200W/㎡
Precipitation Up to 100mm/hour, droplet size 0.5 to
to 4.5mm at wind speed up to
200km/h(124mph)
Ice Up to 25mm
IP rating Lloyds approved for IP66
Tested for IP68 by Thrane & Thrane
Temperature range Operating: -35°C to 55°C
Storage: -40°C to 80°C
Fuse Self recovering poly fuse
POWER SPECIFICATIONS Power source, floating
DC Nominal: 12V . 24V
(at max. 20m cable) 		Operating: 10.5V . 32V
Power consumption Rx: 1.8W (stand by)
Tx: 23W (at 12V DC supply)
CABLE OPTIONS TT-3026M mini-C TransceiverM
to TT-3616D Interconnection
Box cable 		From 20m (standard package)
to 50m
TT-3616D Interconnection Box
to SSAS / Test alert buttons 		50m (standard package)
to 150m (max)
SATELLITE COVERAGE SPECIFICATIONS General Compatible with the new Inmarsat I4 satellite generation.
Automatic ocean shift for global coverage.
24 hour scanning for strongest signal; scanning on signal loss
SHIP SECURITY ALERT SPECIFICATIONS Number of SSAS alert
and test buttons 		2 x SSAS buttons and 1 x test button
(standard package)
Up to 6 alert buttons possible
Message recipients
and test buttons 		Multiple addressing of SSAS and test
messages to the following destinations:
e-mail, fax (via PSTN), SMS (via Special
Access Code), TELEX, PSDN, as well as
other Inmarsat-C or mini-C transceivers
SSAS message retransmission Every 30 minutes until reset

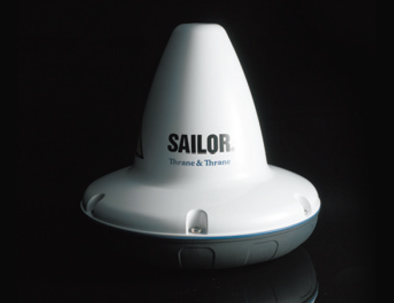

DIMENSIONS AND WEIGHT TT-3026M mini-C Transceiver Widest diameter: 163mm (6.4")
Height: 146mm (5.7")
Weight: 1.1kg (2.4lbs)
TT-3616D Interconnection Box Width: 197mm (7.8")
Depth: 104mm (4.1")
Height: 45mm (1.8“)
Weight: 0.7kg (1.5lbs)
